Description
**Picture may differ from actual product, please call to verify**

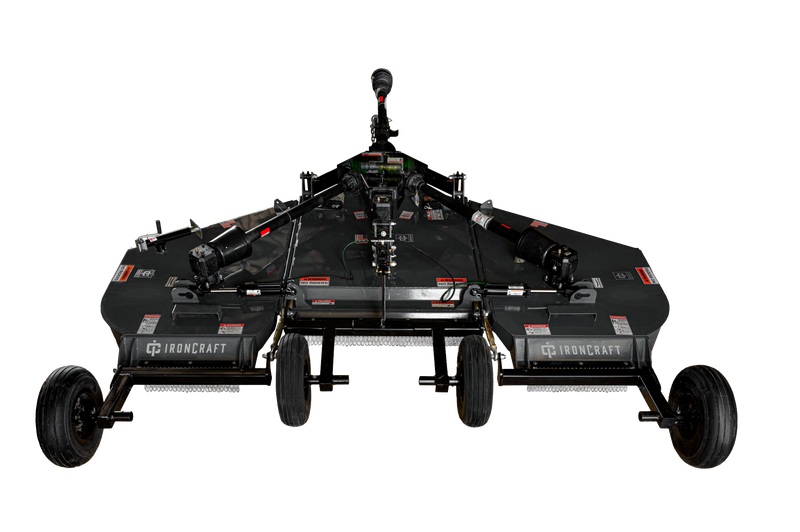

If you are looking for a Flex-Wing Rotary Cutter for your compact tractor, the IronCraft 2512 is the choice for you. With its smooth top deck and spring suspension, this flex-wing is designed to cut grass, weeds, and light brush up to 2” in material while only requiring a minimum PTO horsepower of 35 and one hydraulic outlet.
| Product Family | 2512 Series |
| Product | 2512 |
| Description | 12′ Flex Wing Rotary Cutter |
| RPM | 540 |
| HP Required | 35 minimum PTO (gear drive transmission) |
| Working Width | 144″ |
| Overall Width | 151″ |
| Overall Length | 158″ |
| Tongue Weight | 759 lbs |
| Weight (lbs) | 2630 lbs |
| Cutting Height | 1-1/2″ to 12″ |
| Cutting Capacity | up to 2″ |
| Deck Thickness | 10 GA |
| Deck Height | 11″ |
| Side Bands | 3/16″ |
| Hinge Rods | 1″ |
| Suspension | Single Spring |
| Skid Shoes | Replaceable |
| PTO Drive Shaft | ASAE CAT 5 Constant Velocity |
| Wing Drive PTO | ASAE CAT 4 |
| Driveline Protection | Slip Clutch |
| Blade Holder | 3/16″ formed plate w/ 3/4″ x 2″ blade bar |
| Gearbox Rating | 175 HP |
| Outboard Gearbox Rating | 75 HP |
| Blades | 1/2″ x 3″ with lift |
| Blade Overlap | 6″ |
| Wheel Type | Laminated or Used Aircraft |
| Hitch Type | Swivel Clevis |
| Gearbox Warranty | 5 year limited |
| Safety Tow Chain | Standard |
| Guarding Options | Single Row Chains Standardd |
| FPM | 15657 |
